LCU
Smart City
Light Control Unit (LCU)
(Wireless Controller)
AC Power Supply Series (LCU12Z, LCU16Z, LCU12M, LCU16M)
Features
DC Power Supply Series (LCU51Z, LCU51ZS)
Features
Zigbee Communication: Frequency of 915MHz/2.4GHz.
DC Input: 12V-60VDC/5A, 12V/30mA, 12-36VDC/50mA.
Current, Voltage, Power, Power Factor, Power Consumption Remote Reading.
Fault Alarms: Lamp Failure, Node Lost, Under Voltage, Over Voltage, Over Current, Lamp High Temperature, Lamp Life-time Warning.
RS485 based Lamp Controller (for Tunnel Lighting)
AC Power Supply Series (LCU12, LCU15, LCU22)
Features
RS485 based Lamp Controller (for Tunnel Lighting)
Lamp Controller (LCU12R)
Features
(Wireless Controller)
AC Power Supply Series (LCU12Z, LCU16Z, LCU12M, LCU16M)
Features
Zigbee communication: frequency of 915MHz / 2.4GHz.
96V-264V AC input (96V-400V is customizable).
Current, voltage, power, power factor, power consumption remote reading.
Remote switching on/off, dimming.
Lighting time statistics, fault time statistics, power accumulation remote reading.
Lighting time statistics, fault time statistics, power accumulation remote reading.
Fault alarms: lamp failure, power failure, compensation capacitor failure, pole leakage, node lost, relay failure, under voltage, over voltage, over current, lamp high temperature, lamp life-time warning.
0-10V and PWM dimming.
DC Power Supply Series (LCU51Z, LCU51ZS)
Features
Zigbee Communication: Frequency of 915MHz/2.4GHz.
DC Input: 12V-60VDC/5A, 12V/30mA, 12-36VDC/50mA.
Current, Voltage, Power, Power Factor, Power Consumption Remote Reading.
Fault Alarms: Lamp Failure, Node Lost, Under Voltage, Over Voltage, Over Current, Lamp High Temperature, Lamp Life-time Warning.
RS485 based Lamp Controller (for Tunnel Lighting)
AC Power Supply Series (LCU12, LCU15, LCU22)
Features
PLC communication.
96V-264V AC input (96V-400V is customizable).
0-10V and PWM dimming.
Current, voltage, power, power factor, power consumption remote reading.
Remote switching on/off, dimming.
Lighting time statistics, fault time statistics, power accumulation remote reading.
Fault alarms: lamp failure, power failure, compensation capacitor failure, pole leakage, node lost, relay failure, under voltage, over voltage, over current, lamp life-time warning.
RS485 based Lamp Controller (for Tunnel Lighting)

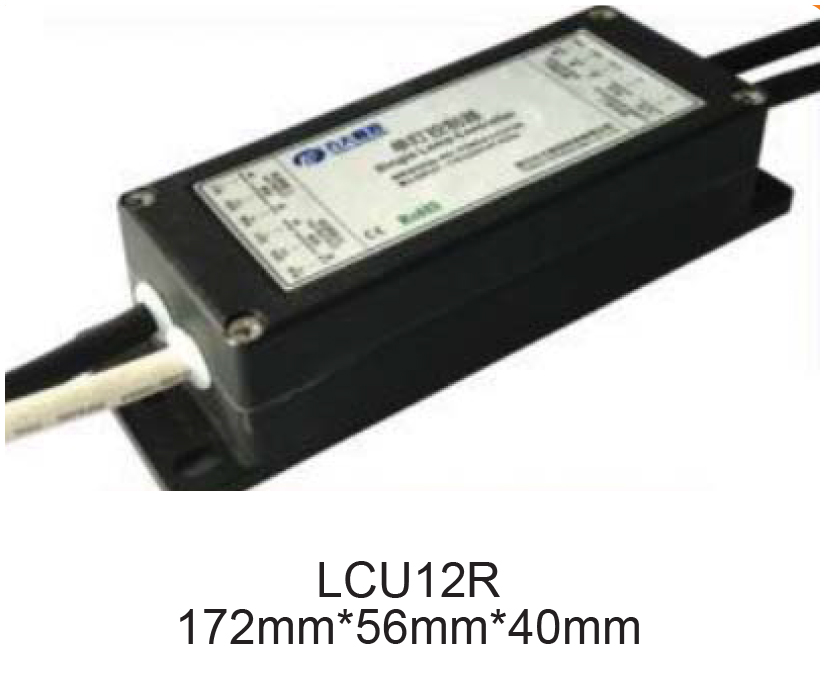

Lamp Controller (LCU12R)
Features
RS485 Communication.
176V-242V AC input.
Current, voltage, power, power factor, power consumption remote reading.
0-10V and PWM dimming.
Remote switching on/off, dimming.
Fault alarms: lamp failure, power failure, node lost, relay failure, under voltage, over voltage, over current, lamp high temperature, lamp life-time warning (different items has different alarms).
